Temporary Wheelchair Lift 1m
This small wheelchair step lift, also known as low rise platform lift, is ideal to access low indoor rises. For example to access a waiting area, wheelchair tribune or stage. Due to its small dimension and easy to use design, this type of step lift is perfect for hospitals and other care centres. Especially due to the quick installation and low power requirements.
General data
- Passenger capacity
- 2
- Lifting capacity
- 260 kg
- Max. entrances
- 2
- Operation controls
- Press-and-hold buttons
- –
- Lifting speed
- 1.0 m/min
Safety & Accessibility
- Wheelchair suitable
- Yes
- Mobility scooter suitable
- No
- Automatic wheel stop barrier
- Mechanical wheel stop barriers
- Weather proof
- No
- Emergency stop button
- No, but lift automatically stops when buttons are released
- Emergency call-out system
- No
- Emergency lowering system
- Yes, mechanical
- Optional
- N/A
Dimensions
- Max. lift height
- 1.00 m
- Total size (WxL)
- 1957 x 1150 mm
- Space within platform
- 1660 x 827 mm
- Min. opening width in facade
- 1200 mm
- Lift entrance width
- 827 mm
- Handrail height
- mm
- Weight
- 250 kg
Power supply
- Power supply
- 230V / 3PH / 50 Hz
- Fuse
- 16 A
- Rated power output continuous duty
- kW
- Power consumption
- kVa

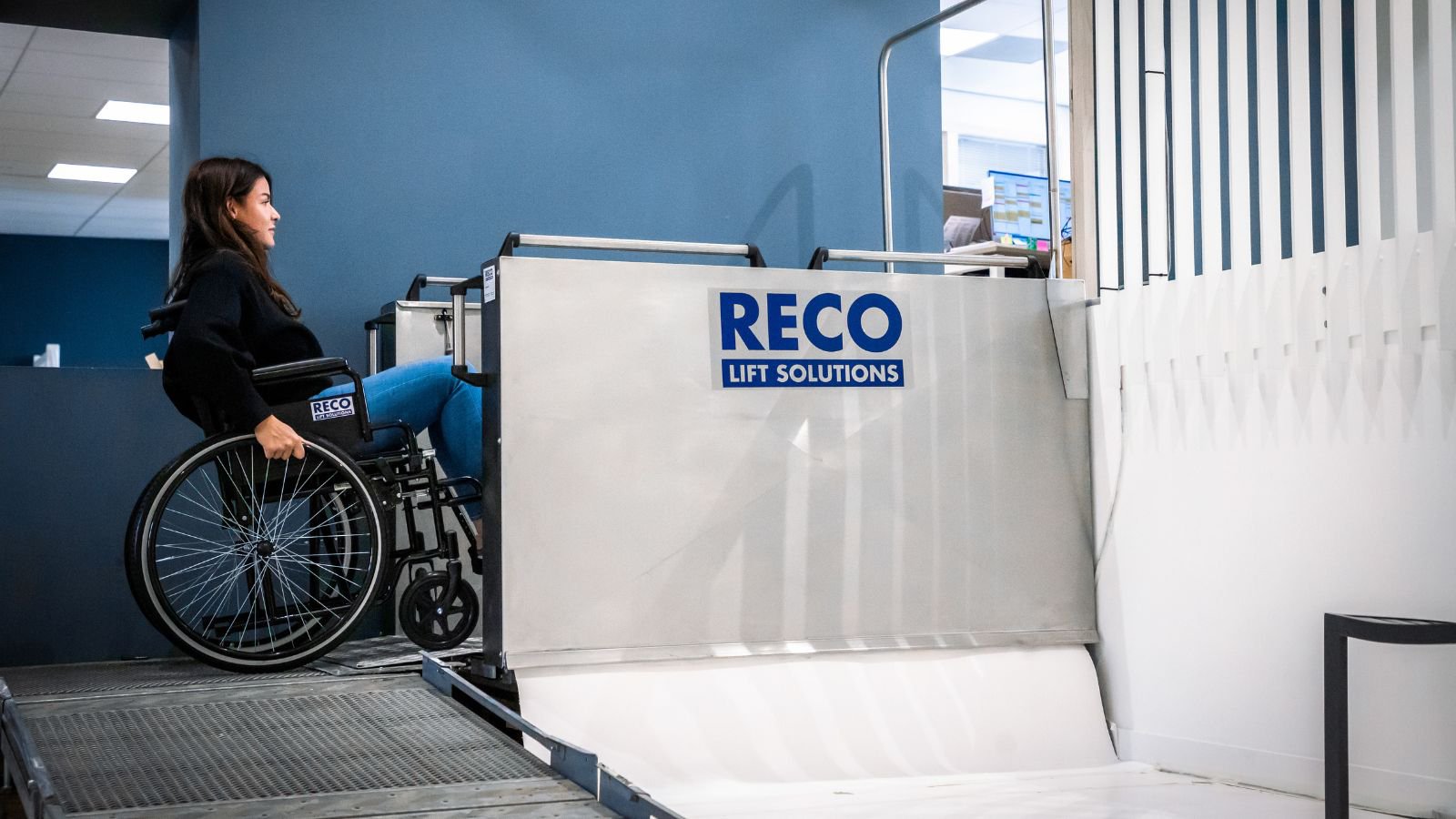

Low rise platform lift for wheelchair access
These temporary low rise platform lifts offer a wide platform for wheelchair users. The platform is fitted with checker plates and safety barriers that automatically tilt into place when the lift starts moving. Because of this wheelchair users are unable to accidentally roll off the platform while the lift is rising to the top position.
Temporary step lifts: quickly deployed, easy to use
An important benefit to these step lifts is that they only require a regular 230V power socket. This allows the lift to be deployed nearly anywhere. And it’s really easy to use by wheelchair users without any help from others. The lift is called by pressing the button at the front of the lift. Once the lift stops and you’ve entered the lift, you simply reach for the controls to your side and press and hold the button to start moving. All controls are placed at the ideal height for any wheelchair users.
RECO's step lifts: compact and lightweight for seamless integration
Due to the lightweight and compact design, the wheelchair step lift 1m can be integrated in nearly any indoor location. For the lift fully blended into the surroundings the lift can placed in a bespoke scaffold construction to cover the metal side panels. The lift does not require a pit for the lift to be placed in. If the platform is still restricted by a small barrier we can provide wheelchair ramps for barrier-free access.
