Temporary Wheelchair Lift 1.7m with staircase
When access is temporarily obstructed, you can deploy our wheelchair step lift and staircase for a temporary pedestrian bypass. This is a quick and highly adjustable configuration, perfectly suited for hospitals, exhibitions and other public places where access for people with disabilities needs to be maintained.
General data
- Passenger capacity
- 2
- Lifting capacity
- 400 kg
- Max. entrances
- 2

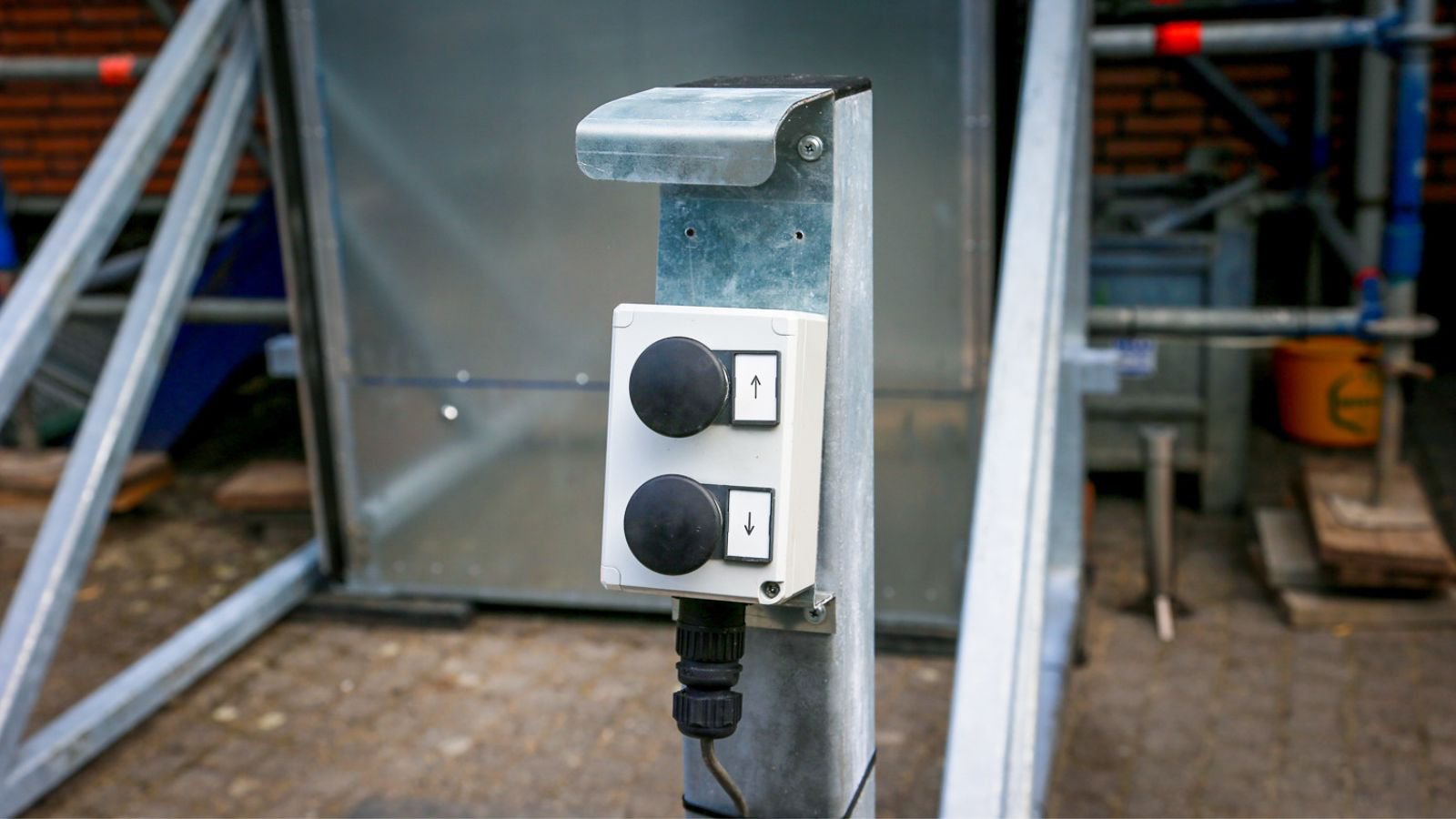

- Operation controls
- Press-and-hold buttons
- –
- Lifting speed
- 4.8 m/min
Safety & Accessibility
- Wheelchair suitable
- Yes
- Mobility scooter suitable
- Yes
- Automatic wheel stop barrier
- Doors need to be closed for the lift to start moving
- Weather proof
- No
- Emergency stop button
- No, but lift automatically stops when buttons are released
- Emergency call-out system
- No
- Emergency lowering system
- Yes, mechanical
- Optional
- Special handrails for visualy impaired
Dimensions
- Max. lift height
- 1.70 m
- Total size (WxL)
- 1900 x 1400 mm
- Space within platform
- 1400 x 1100 mm
- Min. opening width in facade
- 1200 mm
- Lift entrance width
- 1100 mm
- Handrail height
- mm
- Weight
- 750 kg
Power supply
- Power supply
- 230V / 3PH / 50 Hz
- Fuse
- 16 A
- Rated power output continuous duty
- kW
- Power consumption
- kVa

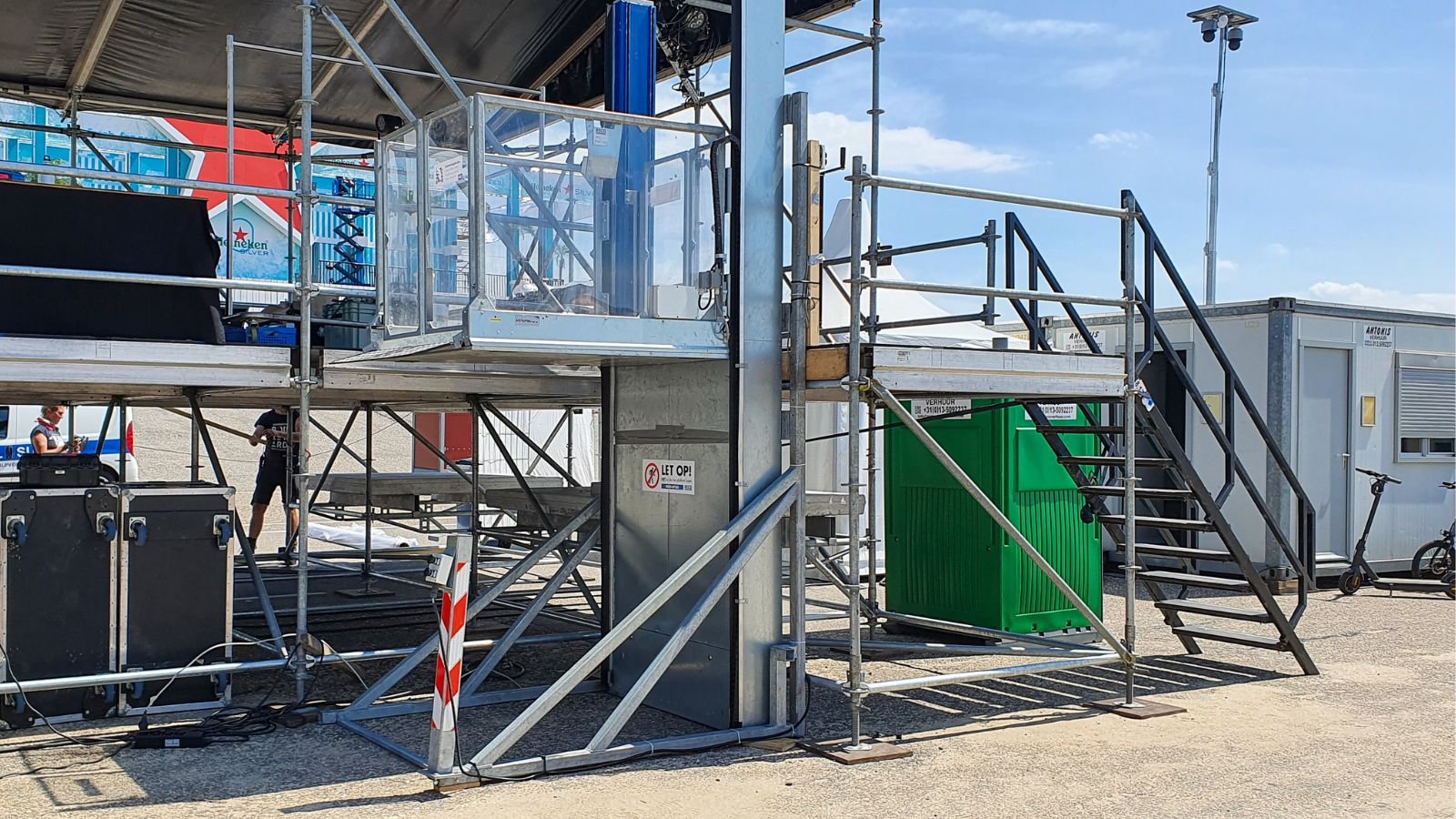

Create a bypass with a low rise platform lift and stairs
The staircase and the low rise platform lift can easily be placed in any indoor location where you need a levelled area to be accessible to visitors. The lift is relatively compact and only requires a 230V connection, making it highly versatile when your looking for the best area to deploy the lift. The stairs offer access to pedestrians.
Wheelchair step lifts: step-free access to intermediate floors
The wheelchair step lift has a maximum height of 1.7 metres which is perfect for mezzanine and other intermediate floors. Above 1 metre, the lift can stop accurately at any height up to 1.7 metre. This provides a perfect barrier-free run off level for wheelchair users and people with walking aids.
Bespoke staircase to provide temporary access for all

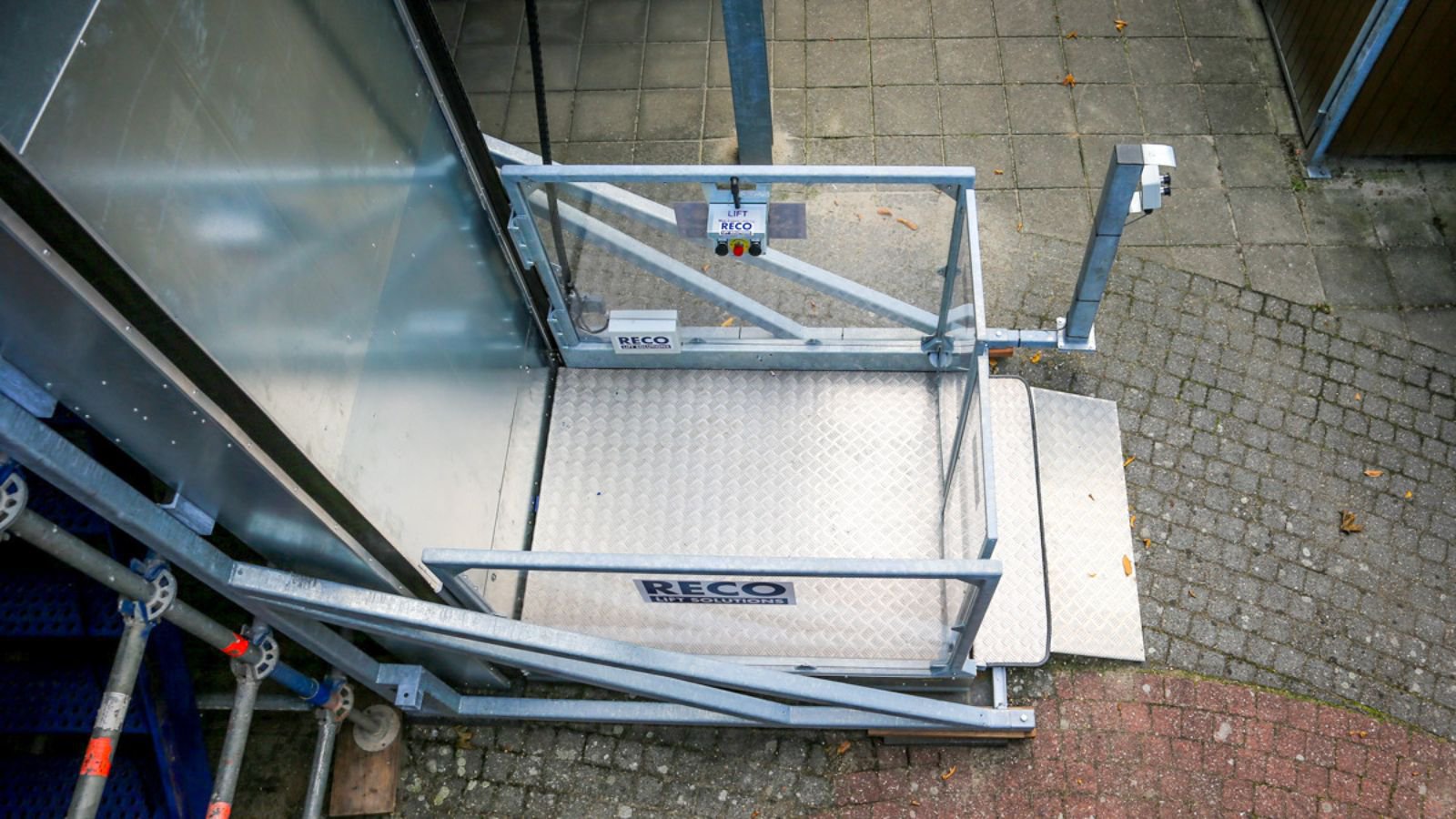

The staircase is normally built up with special non-slip surface plates on each step and fencing with extra safety bars. To further increase accessibility, the fences can be equipped with extra handrails for people who are visually impaired or partial sighted. This creates a fully accessible bypass for all your visitors.
