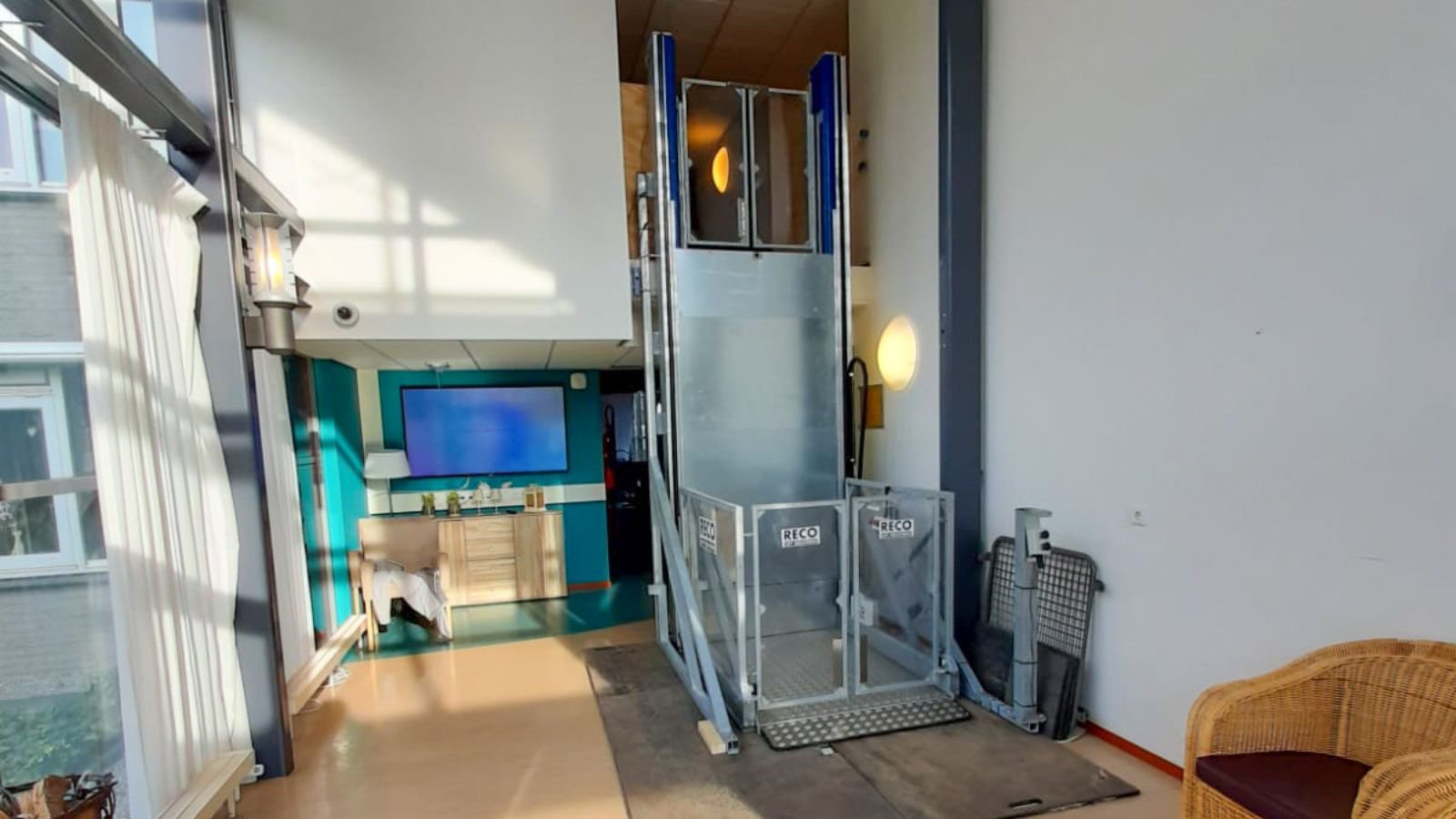

Temporary Wheelchair Lift 1.7m
This is the ideal temporary wheelchair step lift to improve or maintain access to an intermediate floor such as a mezzanine. It’s quickly deployed, easy to use and it offers plenty of space for wheelchairs and mobility scooters. And the wheelchair step lift is designed according to all required safety measurements: press-and-hold buttons, runs at safe lifting speed and the lift won’t move if the fence doors aren’t fully shut.
General data
- Passenger capacity
- 2
- Lifting capacity
- 400 kg
- Max. entrances
- 2

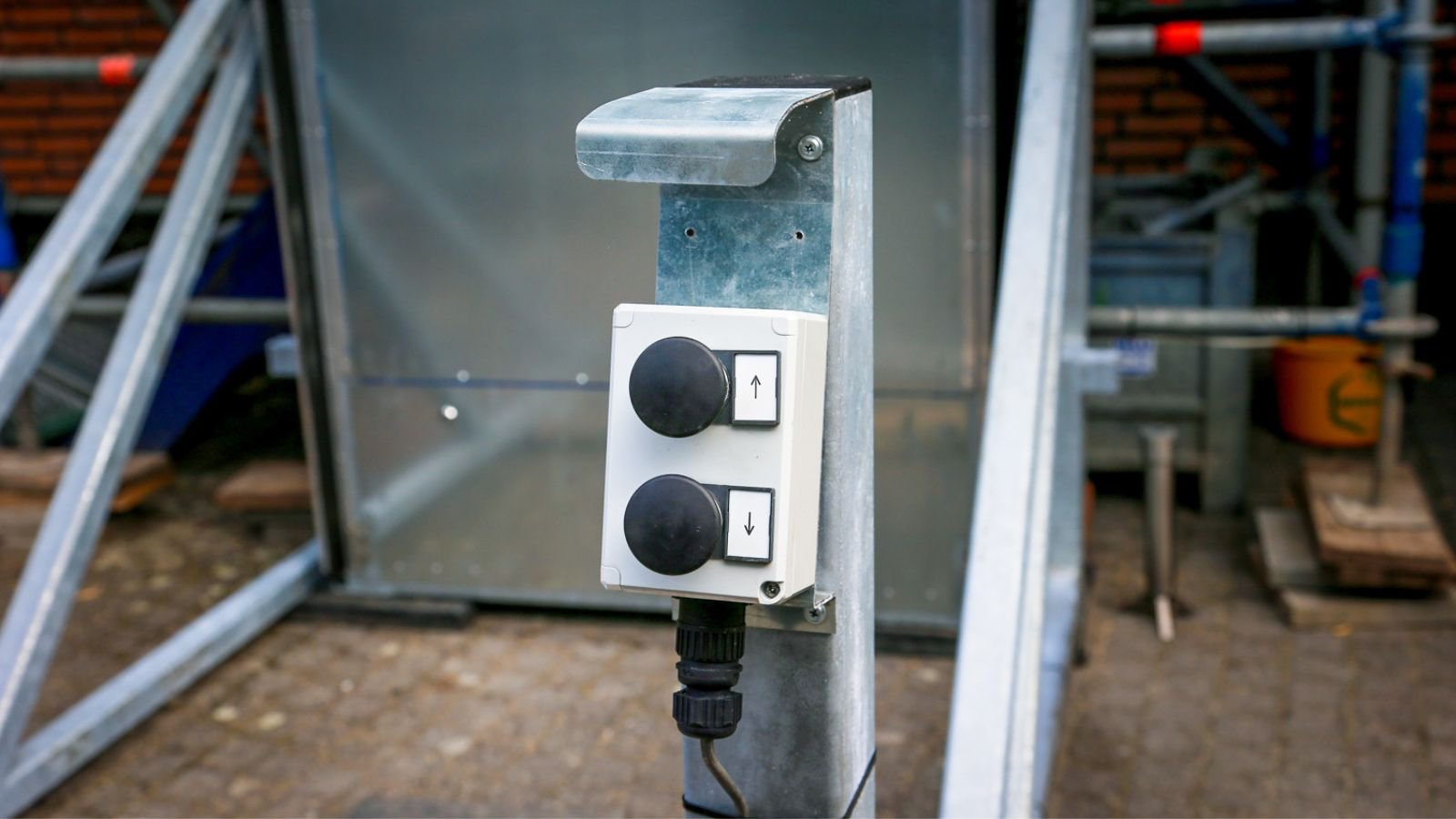

- Operation controls
- by using press-and-hold buttons
- –
- Lifting speed
- 4.8 m/min
Safety & Accessibility
- Wheelchair suitable
- Yes
- Mobility scooter suitable
- Yes
- Automatic wheel stop barrier
- Doors are to be closed for the lift to start moving
- Weather proof
- No
- Emergency stop button
- No, but lift automatically stops when buttons are released
- Emergency call-out system
- No
- Emergency lowering system
- Yes, mechanical
- Optional
- N/A
Dimensions
- Max. lift height
- 1.70 m
- Total size (WxL)
- 1900 x 1400 mm
- Space within platform
- 1400 x 1100 mm
- Min. opening width in facade
- 1200 mm
- Lift entrance width
- 1100 mm
- Handrail height
- mm
- Weight
- 750 kg
Power supply
- Power supply
- 230V / 3PH / 50 Hz
- Fuse
- 16 A
- Rated power output continuous duty
- kW
- Power consumption
- kVa
Low rise platform lift for wheelchair access
The low rise platform lift is easily accessible for wheelchairs due to it’s perfectly barrier-free entrance. Once the wheelchair user has entered the platform, the controls are easily accessed to the side. All buttons are placed at a specific height so that anyone can reach them while sitting in a wheelchair.
Wheelchair step lifts: step-free access to intermediate floors
Due to its maximum height of 1.7m, this low rise platform lift is perfect for wheelchair access to mezzanine floors. Most of these floors are at a height between 1 and 1.7 metres. Our step lift can stop at any height between that with precision up to the centimetre.
RECO's low rise platform lifts: spacious and versatile
To offer all users comfortable access, these lifts are more spacious than most low rise platform lifts. And yet the external dimensions are small in comparison to the size of the platform. This enables us to place the lift nearly anywhere. And it only requires a 230V power socket to provide power.
