Disabled Platform Lift 3m with viewing platform

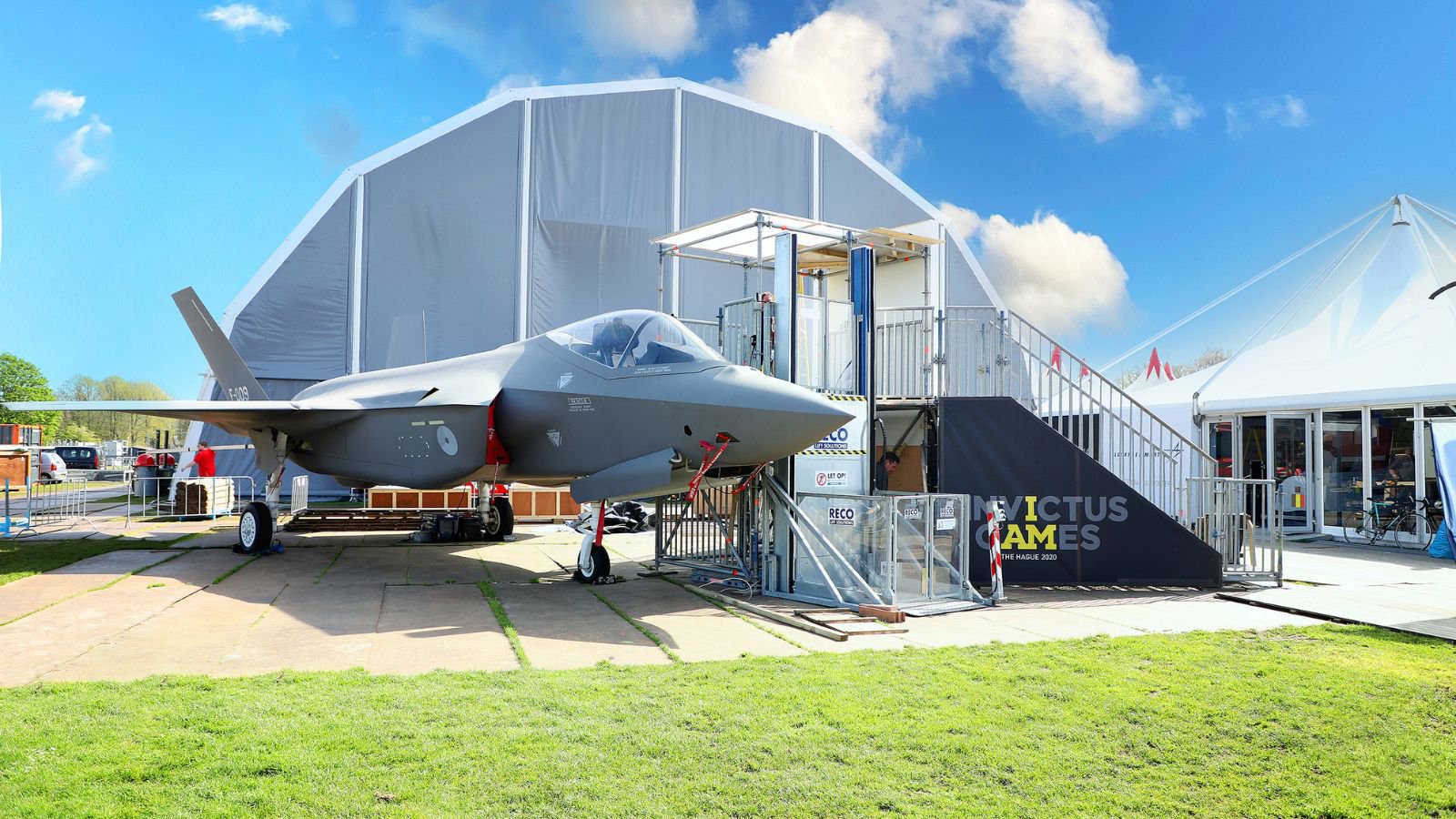

To offer your visitors a unique view of the area, you can deploy our temporary viewing platform with external platform lift and staircase. For instance at an exhibition or event to view the cockpit of an aircraft up close! By request we assemble the viewing platform at just the right level for the best experience. The roofed platform is accessible by stairs and external platform lift, suitable to withstand any type of weather.
General data
- Passenger capacity
- 2
- Lifting capacity
- 400 kg
- Max. number of entrances
- 2
- Operation controls
- by using press-and-hold buttons
- –
- Lifting speed
- 4.8 m/min
Safety & Accessibility
- Wheelchair suitable
- Yes
- Mobility scooter suitable
- Yes
- Automatic wheel stop barrier
- Doors are to be closed for the lift to start moving
- Weather proof
- Yes
- Emergency stop button
- No, but lift automatically stops when buttons are released
- Emergency call-out system
- No
- Emergency lowering system
- Yes, mechanical
- Optional
- Special handrails for visualy impaired
Dimensions
- Max. lift height
- 2.99 m
- Total size (WxL)
- 1900 x 1400 mm
- Space within platform
- 1400 x 1100 mm
- Min. opening width in facade
- 1200 mm
- Entrance width
- 1100 mm
- Handrail height
- mm
- Weight
- 1500 kg
Power supply
- Power supply
- 230V / 3PH / 50Hz
- Fuse
- 16 A
- Rated power output continuous duty
- kW
- Power consumption
- kVa
Wheelchair platform with external lift and stairs:
- Weather-proof lift;
- Easy to use;
- Step-free access;
- Quickly and easily assembled.
External platform lifts for wheelchair-proof events

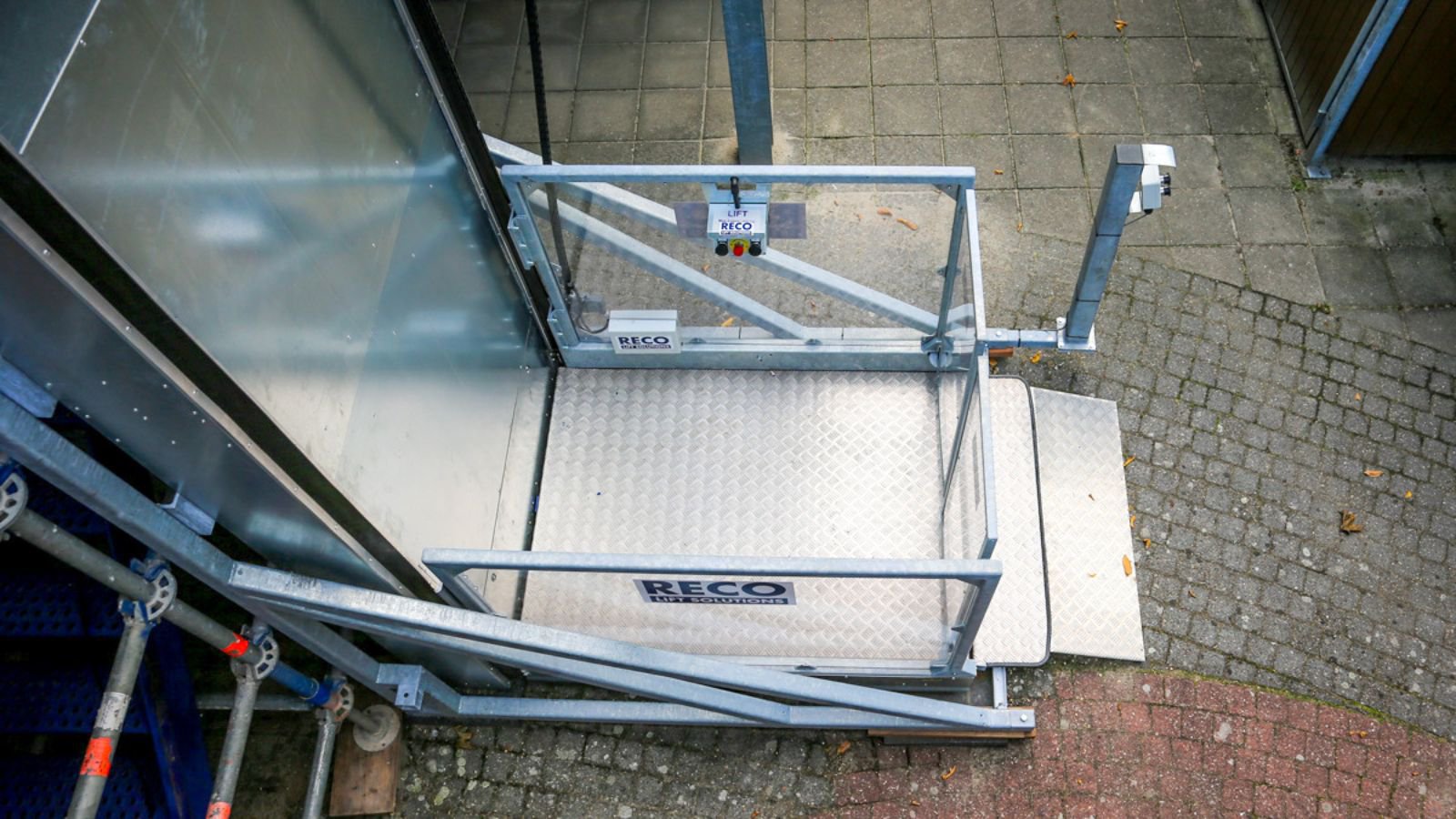

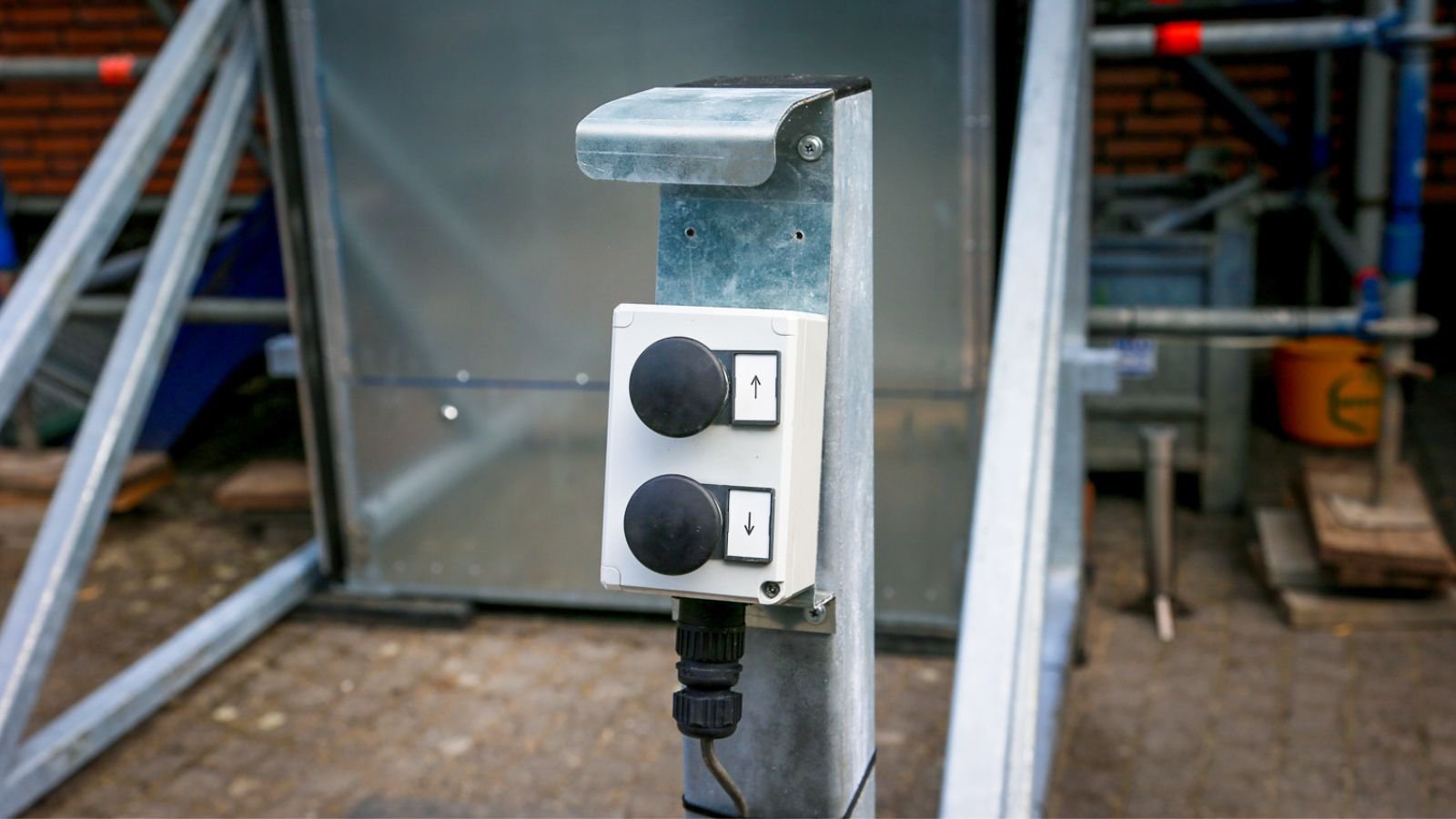

Our wheelchair platform lifts are simple and accessible to anyone who requires a lift due to a disability. At both stops and within the lift there are large, easy accessible buttons to move the lift up and down. For safe lift operation, the lift is operated with press-and-hold buttons. All the buttons are placed at hip height, perfectly accessible to wheelchair users. The lift also comes with safety features such as safety fences and non-slip surfaces, providing users with added confidence and stability.

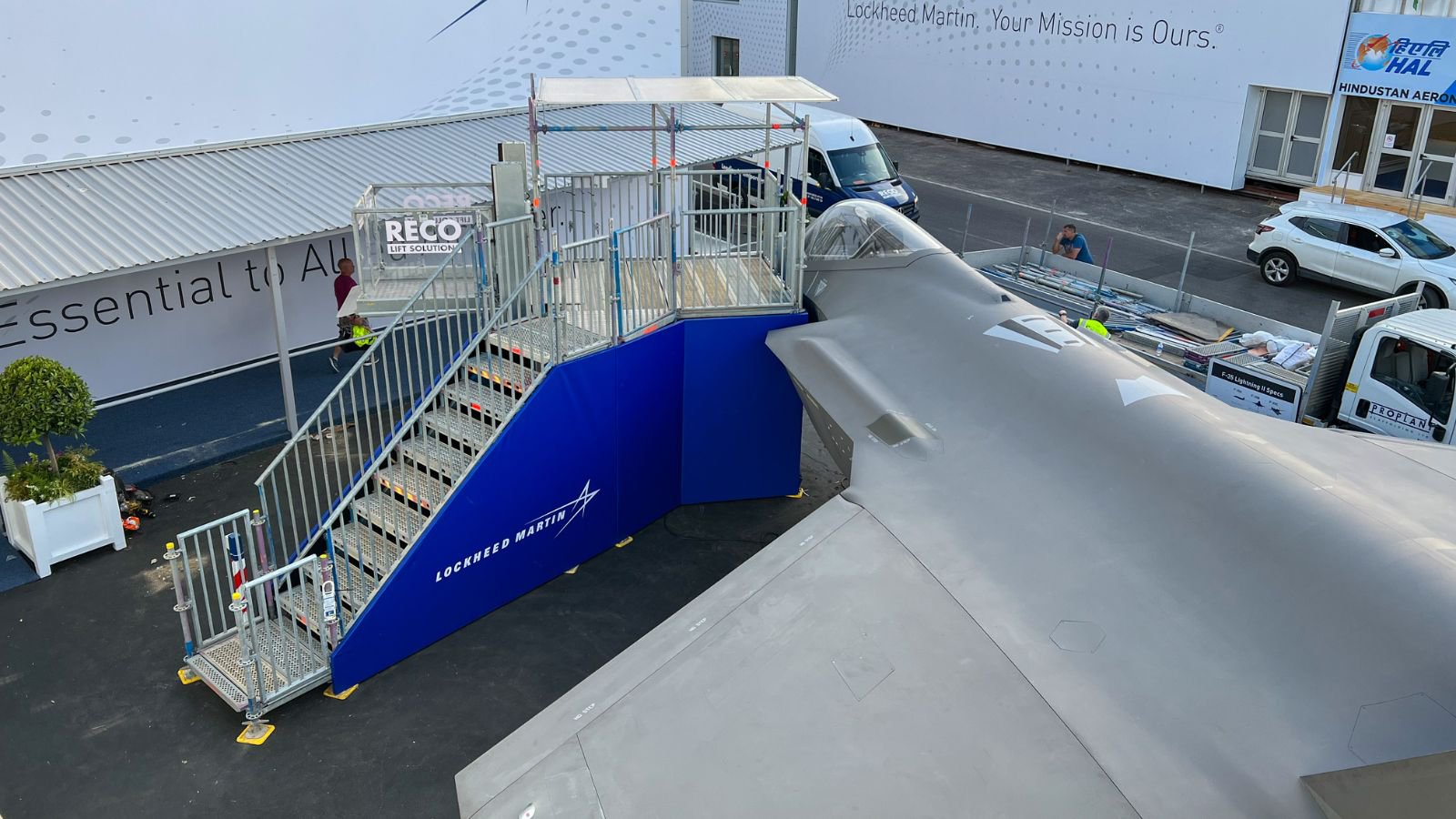

Temporary viewing platform with a roof
The external platform lift is directly connected to the viewing platform. To ensure visitors can still use of the platform comfortably during an occasional shower, we’ve placed a roof over the viewing platform. Both the platform and the connected stairs are built from Layher scaffold parts. In order to make it safe and user friendly, we’ve added fences with extra bars and non-slip surfaces to the viewing platform and the steps.
