Disabled Platform Lift 1.7m

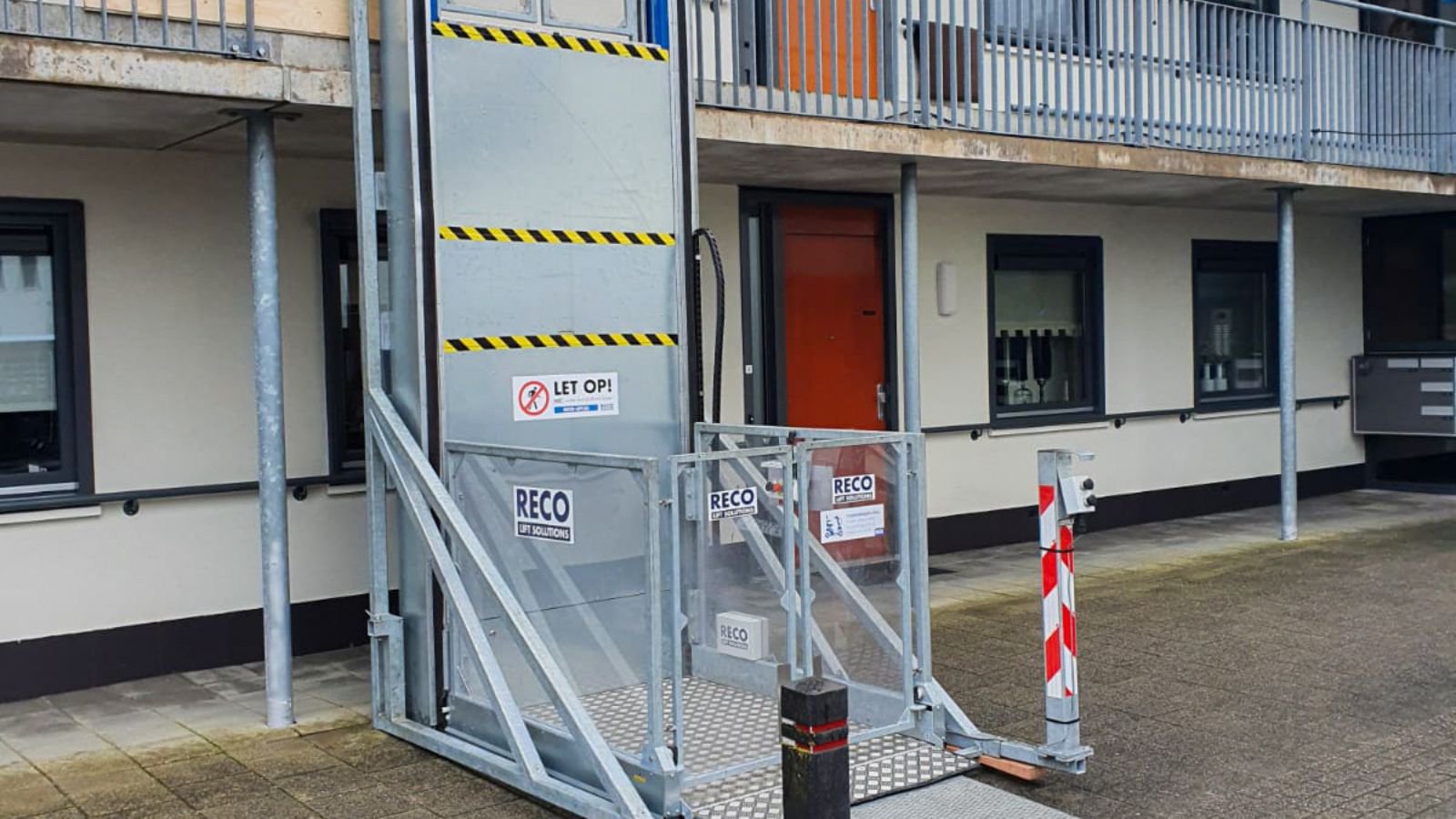

The external platform lift of 1.7 metres is an excellent disabled lift for outdoor use when wheelchair access is temporarily obstructed. The maximum height of 1.7 metres makes it ideal for external access to intermediate floors such as a mezzanine floor or a noble level (piano nobile). The external platform lift offers barrier-free access to wheelchair users or to carefully move fragile goods. That is why this lift is often deployed at monumental buildings and historical exhibitions.
General data
- Passenger capacity
- 2
- Lifting capacity
- 400 kg
- Max. number of entrances
- 2
- Operation controls
- by using press-and-hold buttons
- –
- Lifting speed
- 4.8 m/min
Safety & Accessibility
- Wheelchair suitable
- Yes
- Mobility scooter suitable
- Yes
- Automatic wheel stop barrier
- Doors are to be closed for the lift to start moving
- Weather proof
- Yes
- Emergency stop button
- No, but lift automatically stops when buttons are released
- Emergency call-out system
- No
- Emergency lowering system
- Yes, mechanical
- Optional
- N/A
Dimensions
- Max. lift height
- 1.70 m
- Total size (WxL)
- 1900 x 1400 mm
- Space within platform
- 1400 x 1100 mm
- Min. opening width in facade
- 1200 mm
- Entrance width
- 1100 mm
- Handrail height
- mm
- Weight
- 750 kg
Power supply
- Power supply
- 230V / 3PH / 50Hz
- Fuse
- 16 A
- Rated power output continuous duty
- kW
- Power consumption
- kVa

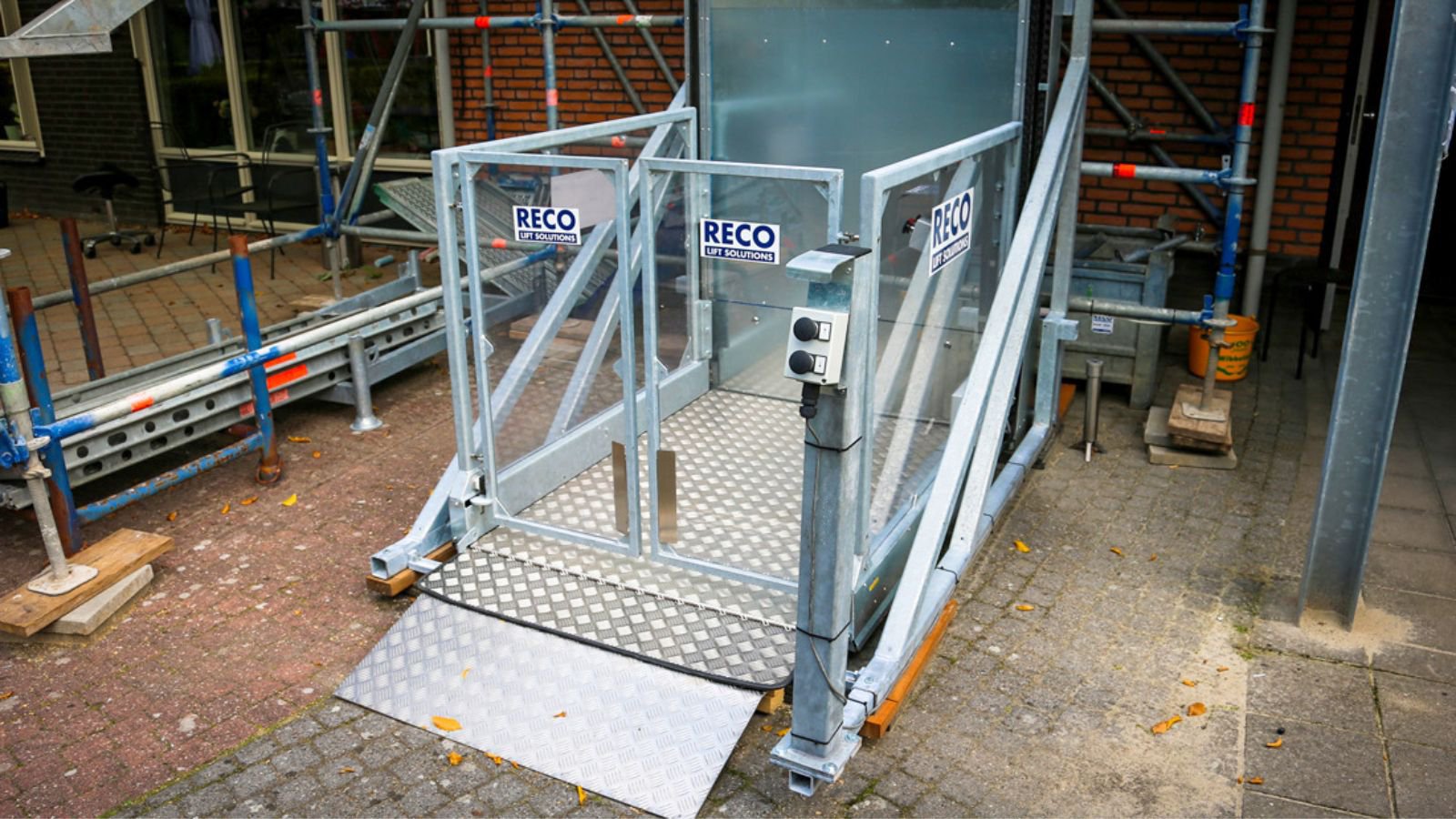

External platform lift to provide temporary access:
- Easy to use;
- Barrier-free accessible;
- Weather-proof;
- Quick installation (only 230V).
External platform lifts: versatile and user-friendly
Due to the low power requirements, relatively small external dimensions and yet large lift capacity, this external platform lift is a versatile lift for all kinds of project. The lift can easily be operated by a wheelchair user without the help of others. But due to the sturdy construction and easy deployment, this lift is also an excellent choice as small transport platform for more fragile goods such as paintings, sculptures and design products.
External passenger lifts for safe access during any kind of weather

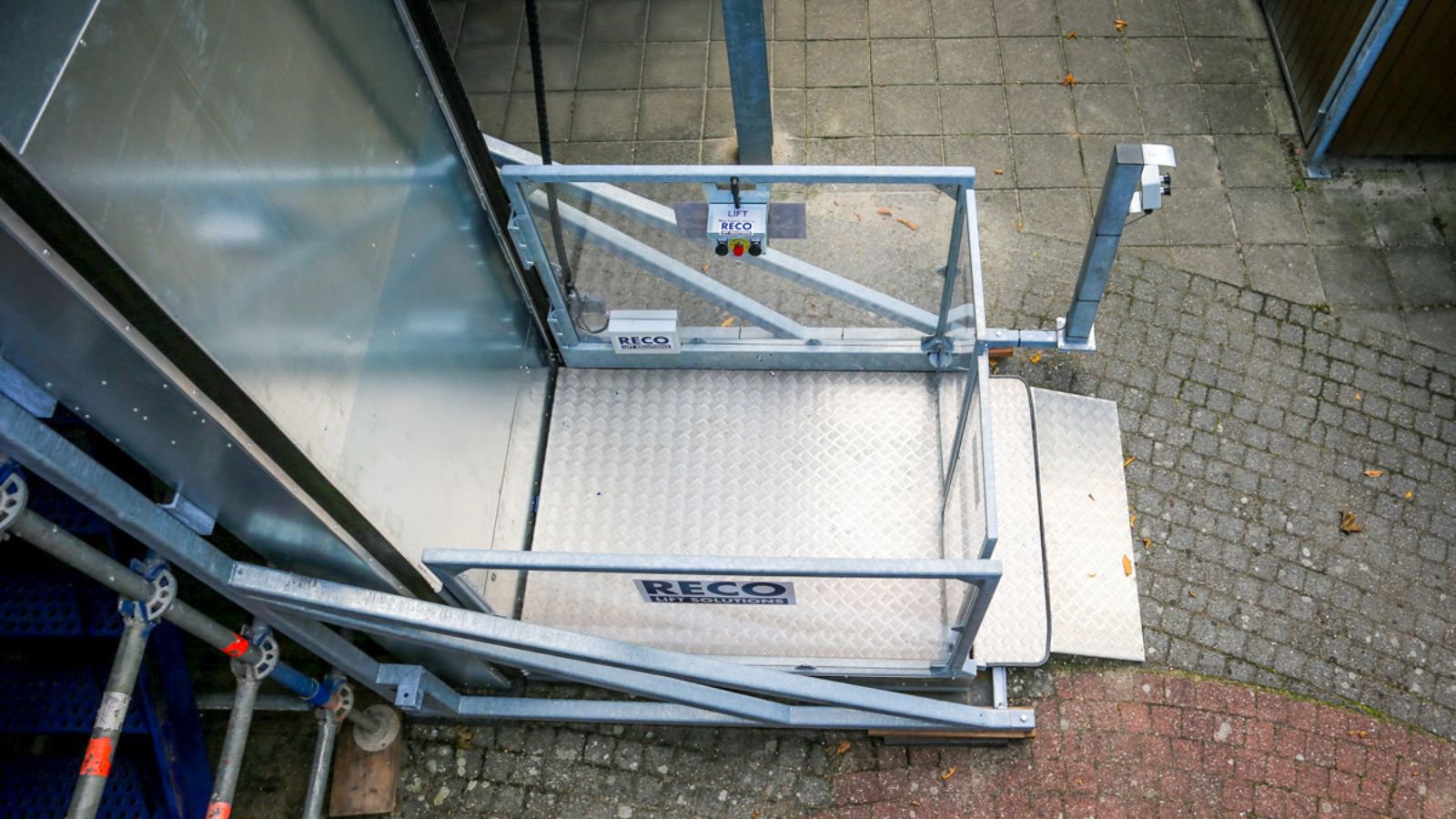

Even in severe weather conditions, the external platform lift is safe to operate. Whether it is showering or snowing, safe and barrier-free access will be maintained. To prevent slipping after rain or hail, we have placed checker plates onto the platforms. After a snowfall, we do recommend checking whether the external platform lift is not snowed in.
